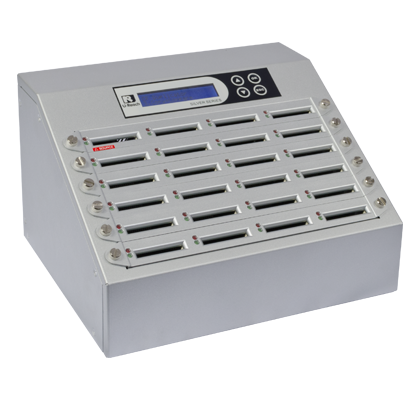

Intelligent 9 Silver Series
1 to 23 CF Duplicator and Sanitizer (CF924S)

Feature

  • Standalone, no PC required to operate the duplicator.
  • Compatible with Compact Flash card, CF1.0, CF2.0, CF3.0, CF4.0, CF4.1, CF5.0, CF6.0.
  • Peak transfer speeds up to 3.9GB/min. per port without speed degradation over thousand of ports.
  • Supports all types of data copy formats while executing bit-for-bit duplication.
  • Supports “Quick copy” for Linux (ext2/ext3/ext4), NTFS and  FAT16/32.
  • Supports CFast device. (via adapter)
  • Can handle the largest CF card capacity on the market.

 All Available Models：

CF904S  CF908S  CF916S  CF924S  CF940S

Product Description
Specification
Comparison Chart

The most cutting edge in duplication technology, our Intelligent 9 Series CF Duplicator is professional, standalone and efficient. It can duplicate a full range of CF cards starting from 3 and up to 119 targets. Speed and flexibility are key factors in satisfying customer needs. Effortless use means a PC or other software are not required; the CF duplicator provides a reliable, worry free copy experience for users without the risk of virus corruption. This CF duplicator series is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly increase efficiency and production productivity.

The Intelligent 9 CF duplicator is not only an efficient duplicator, but also has several ingenious smart device check functions: Flash device quality check, real capacity, speed and device formatting. It is an economical solution for data copy and distribution via CF cards. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.

Model

CF904S

CF908S

CF916S

CF924S

CF940S

 CF9120S

Targets

1-3

1-7

1-15

1-23

1-39

 1-119

Speed

3.9GB/min. (66MB/sec.) *Actual performance is dependent on media transfer speeds.

Specifications

Capacity

*Embedded controller is designed to support capacities up to 2TB.

*Constant improvement supports latest market-available devices.

Operating Type

Supports PC link for monitoring

Stand alone operation

Language Support

English, Japanese

Display

Monochrome LCD Display

Status LED

LED(Red/Green) on each slot

Control Button

4 push buttons(▲, ▼, OK, ESC)

Features

Copy Function

Quick Copy (Systems & Files Copy)/Whole Media

Compare Function

Bit by Bit data comparison

Diagnostic Function

Speed Test; Capacity Test; A2 Fake Card Test

H3 Test: Read only testing

H5 Test: Read & Write testing

H6 Test: Read & Write testing without data area

Erase Function

Quick Erase; Full Erase; DoD Erase

Format Function

FAT16/32 Format

Compatibilities

Flash Devices Compatible

CF Type I. CF1.0, CF2.0, CF3.0, CF4.0, CF4.14

Format Supported

Quick Copy: FAT16/32/64, NTFS, Linux(Ext2/Ext3/Ext4)

Whole Media Copy: All Formats

File system supported

All (Windows, Linux, Other stand-alone systems)

Hardware Specifications

Power Supply

12V Adapter

Working Temperature

5°C ~ 45°C

Storage Temperature

-20°C ~85°C

Working Humidity

20% ~ 80%

Storage Humidity

5% ~ 95%

Certification

FCC, CE, RoHS

Impeccable High Speed

U-Reach CF duplicator can copy up to 3.9 GB/min. on all devices, simultaneously and without any speed degradation as number of targets increase.

Intelligent Copy Option

Systems and Files (Quick Copy Mode)

  1. The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
  2. This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.

Whole Media

  1. The duplicator copies from the initial sector to the end, bit-by-bit.
  2. There are no format limitation in this mode.

Quality Testing / Checking Functions

H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.

Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.

H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.

Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.

H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.

Flash Speed and Capacity Filtration

Real-Time Monitoring

Monitor real-time status via PC through USB cable link.

Easy Maintenance

With a specially redesigned and improved structure, users can easily change the sockets in 3 simple steps, which takes roughly 1 minute.
