Intelligent 9 Silver Series

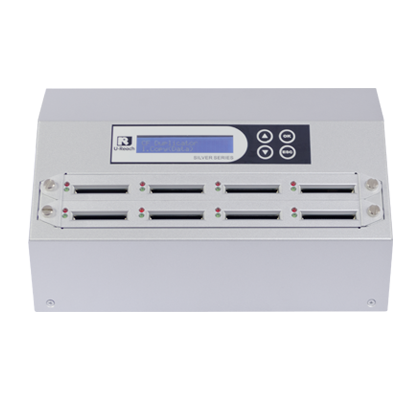

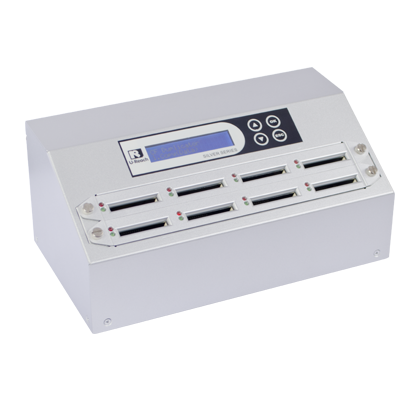

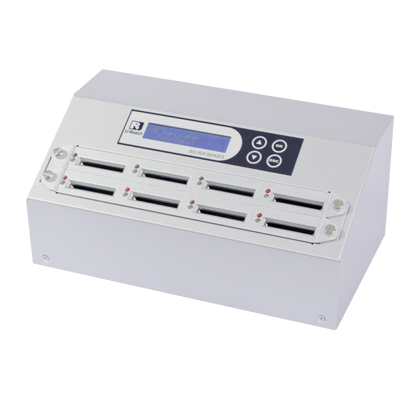

1 to 7 CF Duplicator and Sanitizer (CF908S)

Features

Operates as a standalone system with no PC required.
Compatible with CompactFlash cards including Type I/II, CF 1.0, 2.0, 3.0, 4.0, 4.1, 5.0, and 6.0.
Transfer speeds up to 3.9 GB per minute per port with no speed degradation.
Supports bit-by-bit duplication for all formats, including proprietary and unknown file systems.
Provides data sanitization methods including Quick Erase, Full Erase, and DoD Erase.
Supports CFast devices via an optional adapter.

All Available Models：

CF904S CF908S CF916S CF924S CF940S

Product Description

Specification

Comparison Chart

The most cutting edge in duplication technology, our Intelligent 9 Series CF Duplicator is professional, standalone and efficient. It can duplicate a full range of CF cards starting from 3 and up to 119 targets. Speed and flexibility are key factors in satisfying customer needs. Effortless use means a PC or other software are not required; the CF duplicator provides a reliable, worry free copy experience for users without the risk of virus corruption. This CF duplicator series is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly increase efficiency and production productivity.

The Intelligent 9 CF duplicator is not only an efficient duplicator, but also has several ingenious smart device check functions: Flash device quality check, real capacity, speed and device formatting. It is an economical solution for data copy and distribution via CF cards. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.

Model

CF904S

CF908S

CF916S

CF924S

CF940S

CF9120S

Targets

1-3

1-7

1-15

1-23

1-39

1-119

Speed

3.9GB/min. (66MB/sec.) *Actual performance is dependent on media transfer speeds.

Specifications	Capacity	Embedded controller is designed to support capacities up to 2TB. Constant improvement supports latest market-available devices.
	Operating Type	Supports PC link for monitoring
	Operating Type	Stand alone operation
	Language Support	English, Japanese
	Display	Monochrome LCD Display
	Status LED	LED(Red/Green) on each slot
	Control Button	4 push buttons(▲, ▼, OK, ESC)
Features	Copy Function	Quick Copy (Systems & Files Copy)/Whole Media
	Compare Function	Bit by Bit data comparison
	Diagnostic Function	Speed Test; Capacity Test; A2 Fake Card Test
		H3 Test: Read only testing
		H5 Test: Read & Write testing
		H6 Test: Read & Write testing without data area
	Erase Function	Quick Erase; Full Erase; DoD Erase
	Format Function	FAT16/32 Format
Compatibilities	Flash Devices Compatible	CF Type I. CF1.0, CF2.0, CF3.0, CF4.0, CF4.14
	Format Supported	Quick Copy: FAT16/32/64, NTFS, Linux(Ext2/Ext3/Ext4)
	Format Supported	Whole Media Copy: All Formats
	File system supported	All (Windows, Linux, Other stand-alone systems)
Hardware Specifications	Power Supply	12V Adapter
	Working Temperature	5°C ~ 45°C
	Storage Temperature	-20°C ~85°C
	Working Humidity	20% ~ 80%
	Storage Humidity	5% ~ 95%
	Certification	FCC, CE, RoHS

Impeccable High Speed

U-Reach CF duplicator can copy up to 3.9 GB/min. on all devices, simultaneously and without any speed degradation as number of targets increase.

Intelligent Copy Option

Systems and Files (Quick Copy Mode)

The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.

Whole Media

The duplicator copies from the initial sector to the end, bit-by-bit.
There are no format limitation in this mode.

Quality Testing / Checking Functions

H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.

Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.

H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.

Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.

H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.

Flash Speed and Capacity Filtration

Real-Time Monitoring

Monitor real-time status via PC through USB cable link.

User-Friendly Design

Modular Sockets

Interfaced sockets are subjected to wear-and-tear caused by frequent connections and disconnects. Modular sockets enable quick replacements while reducing downtime, effectively making this solution a long-term and cost-effective ownership.
