High Speed PU Series

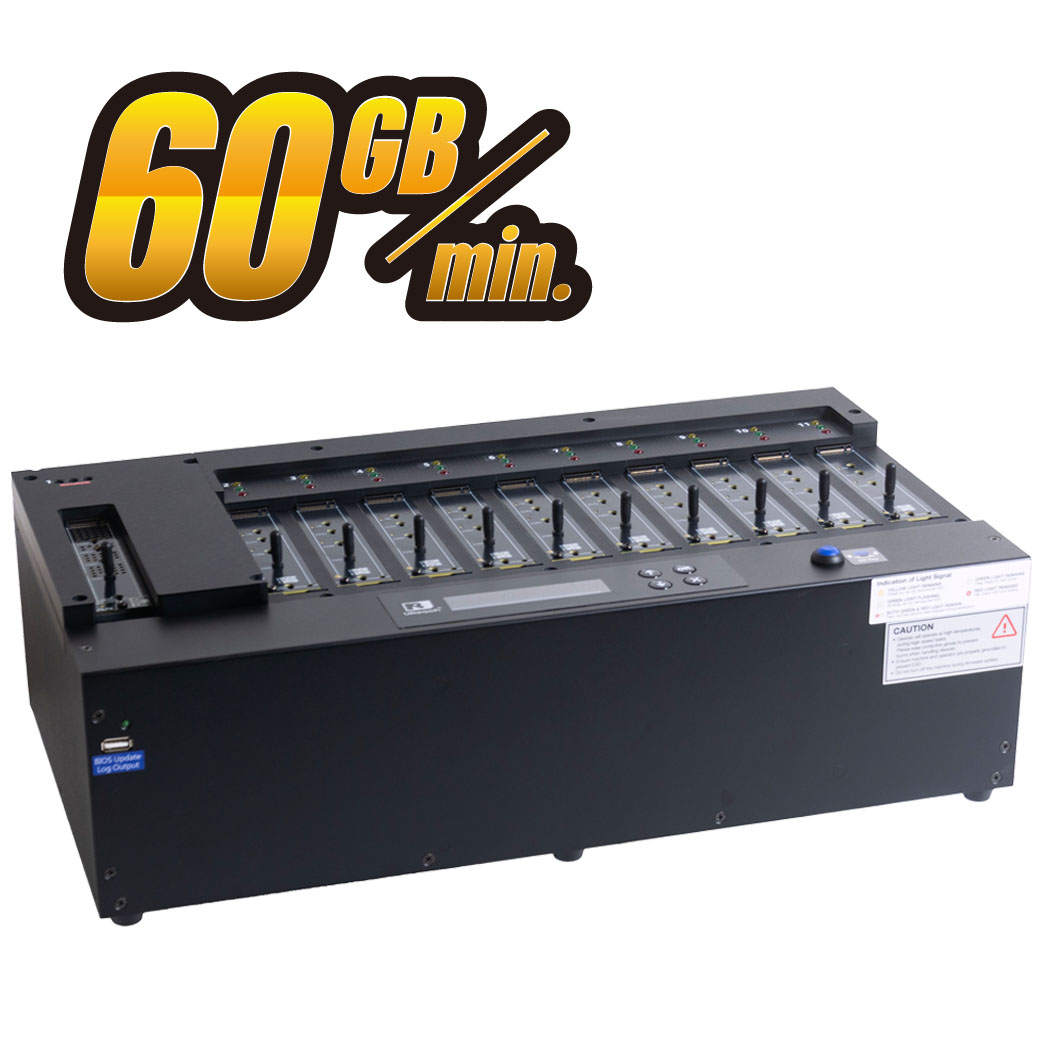

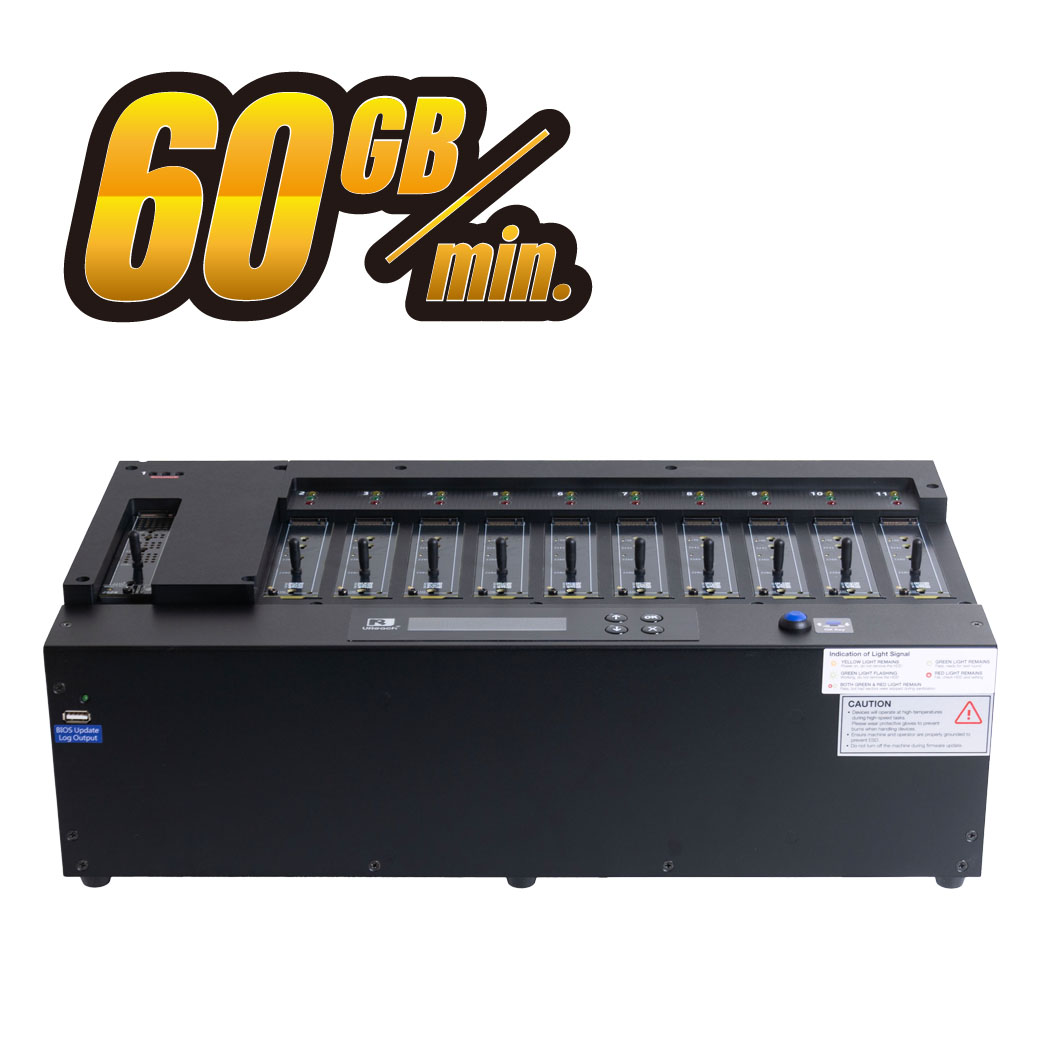

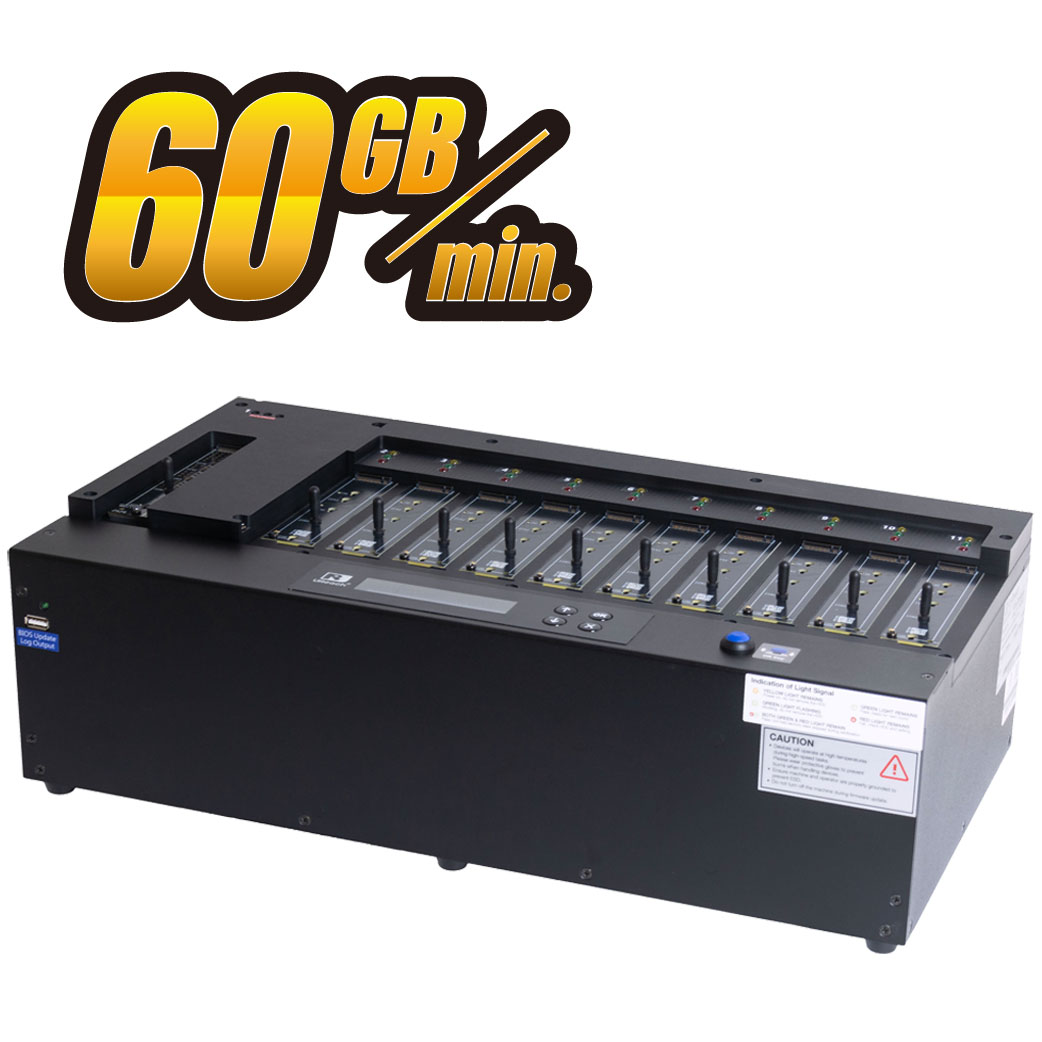

1 to 10 PCIe SSD M.2 Duplicator and Sanitizer (PU1100)

Features

  • Speed transfers up to 60 GB per minute.
  • Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4/LVM) and Mac (HFS, HFS+, HFSX.)
  • Data Sanitization: Quick Erase, Full Erase, DoD Erase and DoD Erase+Compare.
  • Log report management records all task details for better enhanced management.
  • Cable-free design for effortless connection and disconnection of M.2, E1.S, and U.2 devices.
  • Supports M key and B+M key for M.2, E1.S, U.2, and other PCIe devices.

 All Available Models：

PU1100

The brand new PU series M.2/E1.S/U.2 PCIe SSD duplicator offers many models with varying quantities of ports to meet different production needs.

It features ultra-high speed duplication at a maximum copy speed of 60 GB per minute. The speed does not degrade even as the number of targets increases. It can also detect the  devices’ protocols which greatly enhances productivity and efficiency. Furthermore, the built-in source disk image management system helps manage the source disk images and reduce human error.

Impeccable High Speed

U-Reach High Speed PU series M.2/E1.S/U.2 PCIe SSD duplicator is capable of copying at 60GB/min. on all HDDs simultaneously, without any speed degradation as number of targets increase. This duplicator is great for manufacturers.

No waiting time required for duplication

When each round of duplication is completed, the next round can start immediately without having to wait or restart the machine

Native Support NVMe and SATA Protocols

Converter chips are not being adopted by PCIe series which deploys an M.2/U.2 interface with native NVMe/SATA protocols. This directly transfer the data to enhance the compatibility during the duplications.

FPGA-based Platform

Industrial-grade FPGA design not only facilitates cross interface / cross-protocol duplication but avoids restarting the system after each round of duplication.

Note: When doing cross-protocol duplication, it is recommended to use a data disk. If you are copying OS system, it is recommended to use the same protocol device to ensure the device can boot into the operating system properly.

Intelligent Duplication Modes

copy-mode-features

Illustration of Copy Modes

The areas containing data are marked in blue. The areas being copied are marked in red. Duplication time depends on the speed supported by the hard drive's controller chip.

Sanitization Methods

Source Management System

The administrator can through a specific software store the image files on the computer for centralized management. When needed, this image files will be sent to the duplicator for duplication. This is designed specifically for production plant  as this makes it easier to mange the source and reduce human error.

Double Data Verification: Compare + CRC Checksum

U-Reach duplicators makes straightforward copies, but it is imperative that the copied data are verified through a bit-by-bit process, this will ensure successful copied and reduce customer recalls.

High Compatibility

  • Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
  • Whole media copy mode supports all system and proprietary formats.
  • Supports various brands.
  • Designed to support 18TB+ capacities.
  • Supports MBR and GPT partitioning.

Event Log Report

hdd-logreport

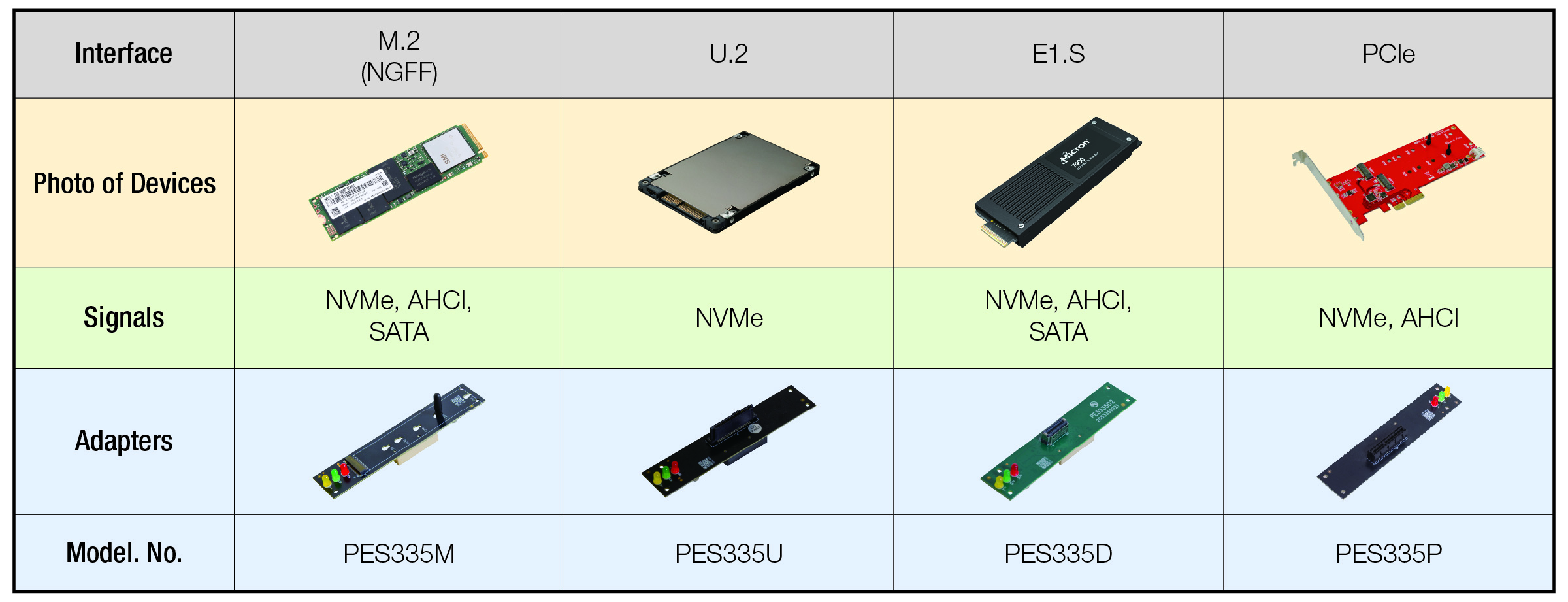

Support Interfaces
