Intelligent 9 Golden Series

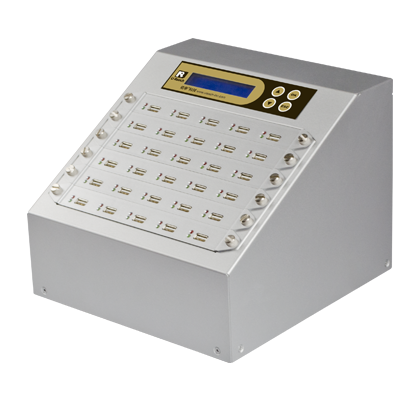

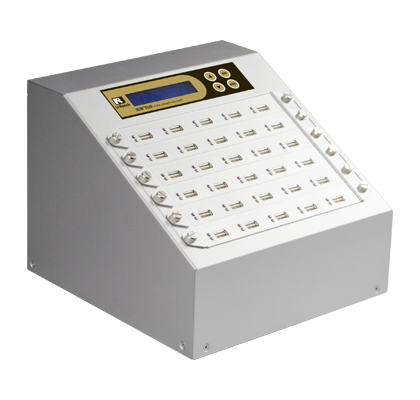

1 to 29 USB Duplicator and Sanitizer (UB930G)

Feature

  • Standalone design without requiring PC for operation.
  • Compatible with variety of USB 2.0/3.0/3.1 devices and external USB HDDs.
  • Peak transfer speeds up to 2GB/min. per port without speed degradation over thousand of ports.
  • Modular socket port design for quick replacement reducing further downtime.
  • Redundant external power adapters for fail-over operations without interrupting machine tasks (select models only).
  • Supports bit-by-bit copy for all formats, including proprietary and unknown formats.
  • Data Sanitization: Quick Erase, Full Erase, and DoD Erase.
  • Supports up to 3TB+ capacity for external USB HDDs.
  • Supports optional eUSB (USB DOM) 2.54mm and 2.00mm adapters.
  • Integrates log report management system for records purpose.
  • Supports hardware-level write protection for specified USBs (contact us for details).
  • Offers media durability burn-in tests.

 All Available Models：

UB910G   UB920G   UB930G   UB940G   UB960G

Product Description
Specification
Comparison Chart

The most cutting edge in duplication technology, our Intelligent 9 series USB drive duplicator is professional, standalone and efficient. It can duplicate a full range of USB drives starting from 9 and up to 59 targets. Speed and flexibility are key factors in satisfying customer needs. Its effortless use means a PC or other software are not required; the USB drive duplicator provides a reliable, worry-free copy environment for users, without the risk of virus corruption. This USB duplicator series is integrated with a high-speed compare function to ensure data copies with 100% accuracy. It also boasts quick format capabilities. These features greatly help increase efficiency and production productivity.

The Intelligent 9 Golden series has added some more important functions – Event Log report , Durability test and Double source comparison.

The Intelligent 9 USB drive duplicator is an economical solution for data copy and distribution via USB flash drives. It contains smart, reliable and beneficial functions that provide an outstanding performance and quality that will save you time and money.



Impeccable High Speed

U-Reach USB drive duplicator can copy up to 2GB/min on all devices, simultaneously and without any speed degradation as number of targets increase.

Intelligent Copy Option

Systems and Files (Quick Copy Mode)

  • The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
  • This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.



Whole Media

  • The duplicator copies from the initial sector to the end, bit-by-bit.
  • There are no format limitation in this mode.

Support High Compatibilities with Various USB Devices

Due to unique redundant power design, it can support special medias with sufficient power supplies, such as: USB 2.0/3.0 external USB hard drives, MP3 players, etc.

Double Source Comparison

Double source comparison can eliminate the chance of a duplication error caused by a worn source. Use the first port as a copying source and use the second port as a compare source. It can guarantee the highest reliability and 100% correctness of the duplication result.

Quality Testing / Checking Functions

H3 Read Only Test
Determines if the flash is readable. This test will not modify pre-existing data.

Capacity Check
Verifies initial sector and the final sector the connected flash device within 2 seconds.

H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, then devices are formatted into FAT.

Read/Write Speed Check
This function performs a read/write benchmark of the connected devices within 8 seconds.

H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.

Burn-in Test

Performs user-defined burn-in tests to flash devices from 30 minutes through 30 days to determine quality and longevity.

Flash Speed and Capacity Filtration

Real-Time Monitoring

Monitor real-time status via PC through USB cable link.

Event Log Report

  • Records duplicator operation (time and result).
  • Records system and target information details (VID/PID, MID/OID, S/N number).
  • An essential tool for production quality remote control and yield analysis.

Mass Duplication W Mode Write Protect USB

Easy Maintenance

With a specially redesigned and improved structure, users can easily change the sockets in 3 simple steps, which takes roughly 1 minute.

STEP 1

Unscrew and remove the cover of the socket.

STEP 2

Replace a damaged socket with a new one.

STEP 3

Screw the cover.



User-Friendly Design

Modular Sockets

Interfaced sockets are subjected to wear-and-tear caused by frequent connections and disconnects. Modular sockets enable quick replacements while reducing downtime, effectively making this solution a long-term and cost-effective ownership.

Ergonomic & Compact Proportions

The refined ergonomic proportion reduces the flash duplicator by 50% to 70% compared to traditional chassis design.



Model

UB910G

UB920G

UB930G

UB940G

UB960G

UB9120G

Targets

1-9

1-19

1-29

1-39

1-49

1-119

Speed

2GB/min. (33MB/sec.) *Actual performance is dependent on media transfer speeds.



Specifications

Capacity

Embedded controller is designed to support capacities over 18TB+.

Constant improvement supports latest market-available devices.

Operating Type

Supports PC link for monitoring and event log report output

Stand alone operation

Language Support

English, Japanese

Display

Monochrome LCD Display

Status LED

LED(Red/Green) on each slot

Control Button

4 push buttons(▲, ▼, OK, ESC)

Features

Copy Function

Quick Copy (Systems & Files Copy)/Whole Media

Compare Function

Bit by Bit data comparison

Diagnostic Function

Speed Test; Capacity Test; A2 Fake Card Test

H3 Test: Read only testing

H5 Test: Read & Write testing

H6 Test: Read & Write testing without data area

Erase Function

Quick Erase; Full Erase; DoD Erase

Format Function

FAT16/32 Format

Special Features

Use Port 2 as Compare Source

To prevent copy fail caused by worn source

Log Manager

Records all task details and can general report in .txt and .csv format.

PC-Link

Real-time PC Monitoring

Burn-in Test

Ranges from 30 mins to 30 days

Compatibilities

Flash Devices Compatible

USB 2.0/ USB 1.1/ USB Flash/ USB 3.0/ USB HDD

USB Write Protection

Specified USB Required.

Format Supported

Quick Copy: FAT16/32/64, NTFS, Linux(Ext2/Ext3/Ext4), MAC(HFS, HFSX, HFS+)

Whole Media Copy: All Formats

File System Supported

All (Windows, Linux, Other stand-alone systems)

Hardware Specifications

Power Supply

12V Adapter

Working Temperature

5°C ~ 45°C

Storage Temperature

-20°C ~85°C

Working Humidity

20% ~ 80%

Storage Humidity

5% ~ 95%

Dimension(cm)

From 24.1x19.5x11.5 to 45x30x29.5

Weight(kg)

From 1.9 to 19

Certification

FCC, CE, RoHS
